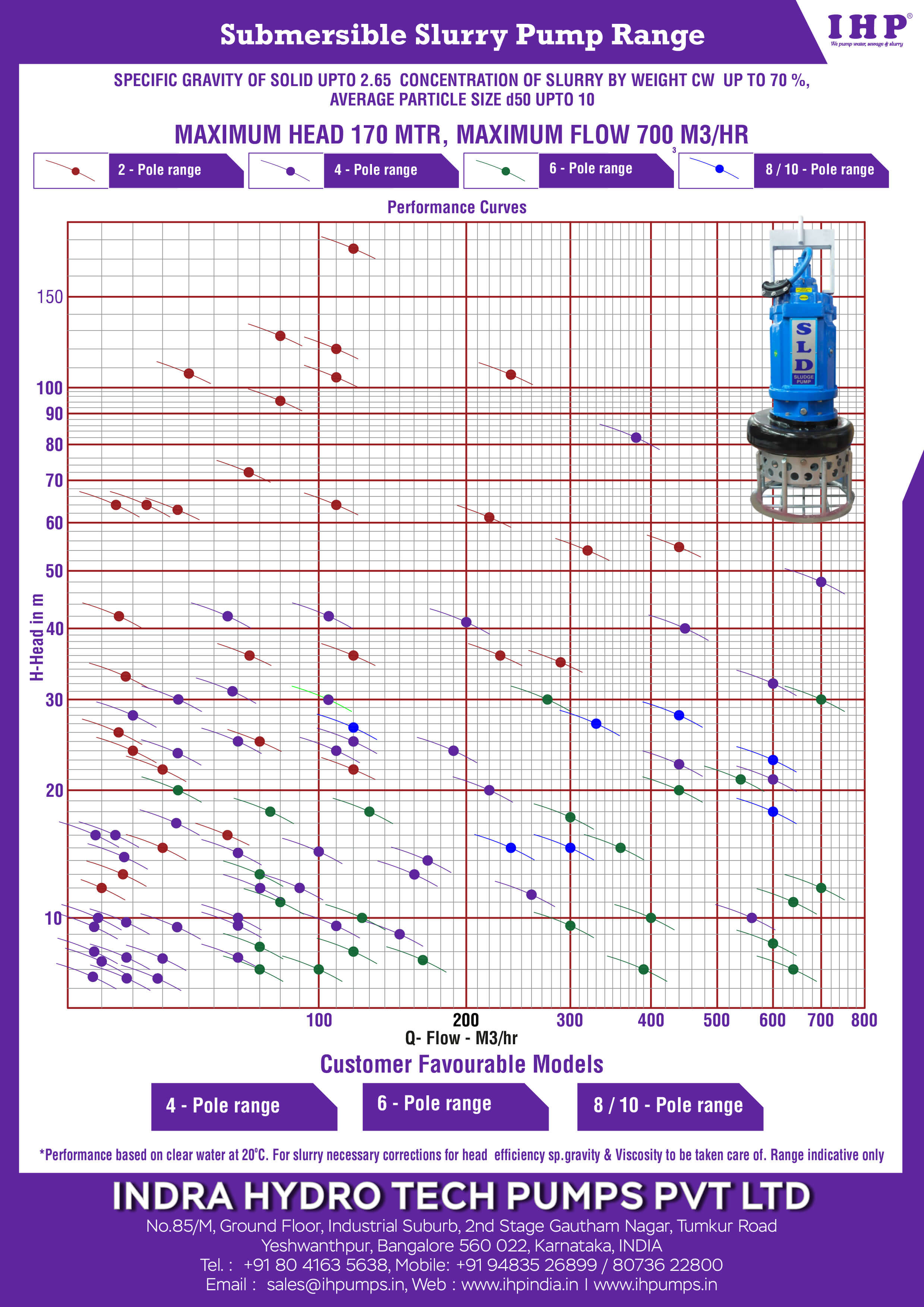

Submersible Slurry Pumps - 3.75Kw - 110Kw - 50 / 60Hz Specific gravity of solids upto 2.65 Concentration of Slurry by weight Cw Upto 70% - Average Particle Size d50 upto 10

Design Mandate

Indra Hydro Tech Pumps through consultation with mining industry now introduces new range of Submersible Slurry pumps the "SLD Series"

The SLD pump has been designed to efficiently pump contaminated fluids containing solids in suspension to a maximum of 70% by weight.

A heavy duty 27% Cr agitator helps keep solids in suspension The SLD pump series are small, slimline and lighter than a Vertical Cantilever Sump pump thereby offering cost reduction & savings in man-hours, repairs and transportation.

Application

Harbour construction
Ash transfer
Silt removal
Sand and gravel pumping
Barge and tank clean out
Lime slurry
Coal runoff sumps
Food waste

Design Features

1)	Submersible cable with epoxy fill to raise moisture resistance. Sizes, styles and length are available to meet your specific requirements.
2)	Double silicon carbide mechanical seals in an oil bath offering are running capability. A wear prod protection ring is also fitted
3)	Windings are class H insulation rated to 200°C and incorporate overheating and overload protection.
4)	Top discharge, self venting design means no more airlock. Jacket design ensures motor is always cooled even when pumping within inches of the bottom.
5)	Semi Open, 27% Cr hardened impeller resists abrasion and allows the pumping of large diameter solids.
6)	27% Cr agitator helps to keep solids in suspension thereby minimizing the settlement of pump solids in the pump or piping.
7)	27% Cr wear plate to reduce abrasion. can be adjusted externally to keep efficiency at a maximum.
8)	Replaceable stainless steel shaft sleeve to protect the shaft.
